Scheduling and turn execution

Orleans separates request scheduling from task scheduling:

• request scheduling decides which incoming calls may make progress for an activation;
• task scheduling executes each synchronous work item one at a time in that activation’s context.

This distinction explains how reentrant calls can interleave without two pieces of grain code running in parallel on the same activation.

WorkItemGroup and ActivationTaskScheduler

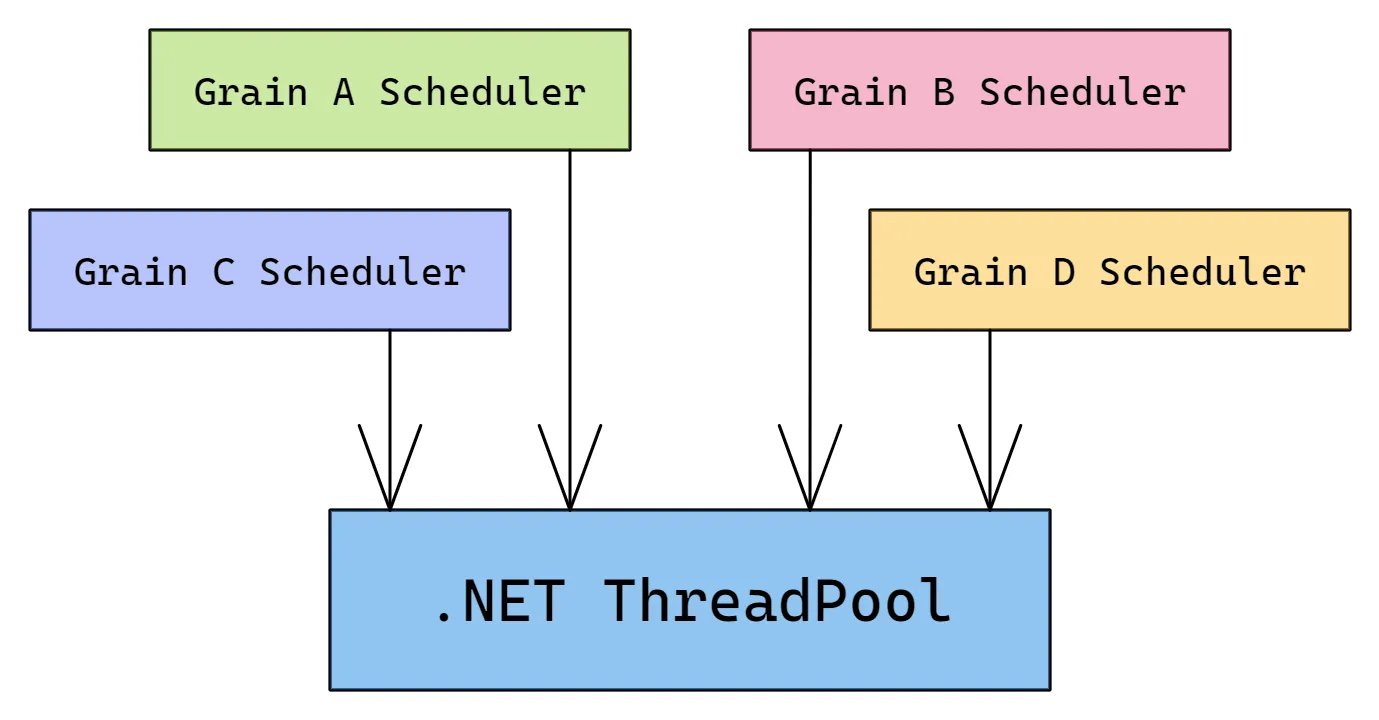

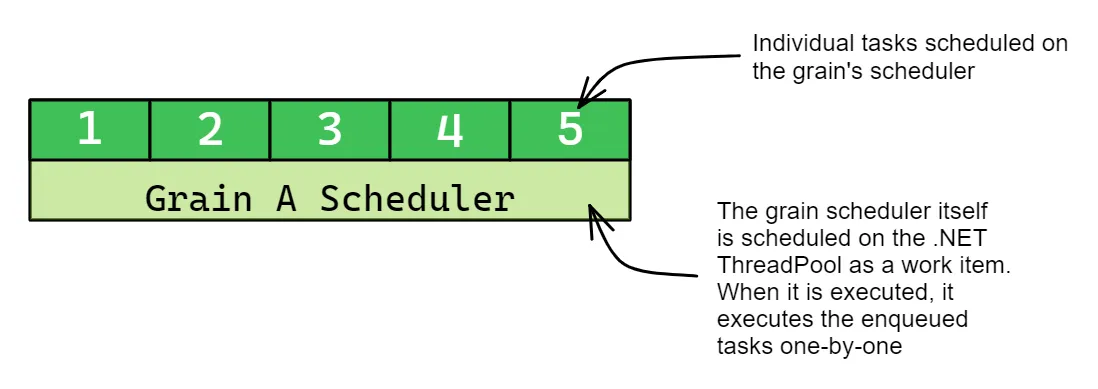

Each activation owns a WorkItemGroup and an ActivationTaskScheduler, which derives from the .NET TaskScheduler abstraction. The task scheduler enqueues work into the group. The group implements a small state machine (Waiting, Runnable, and Running) and schedules itself onto the .NET managed thread pool.

Rendering diagram.

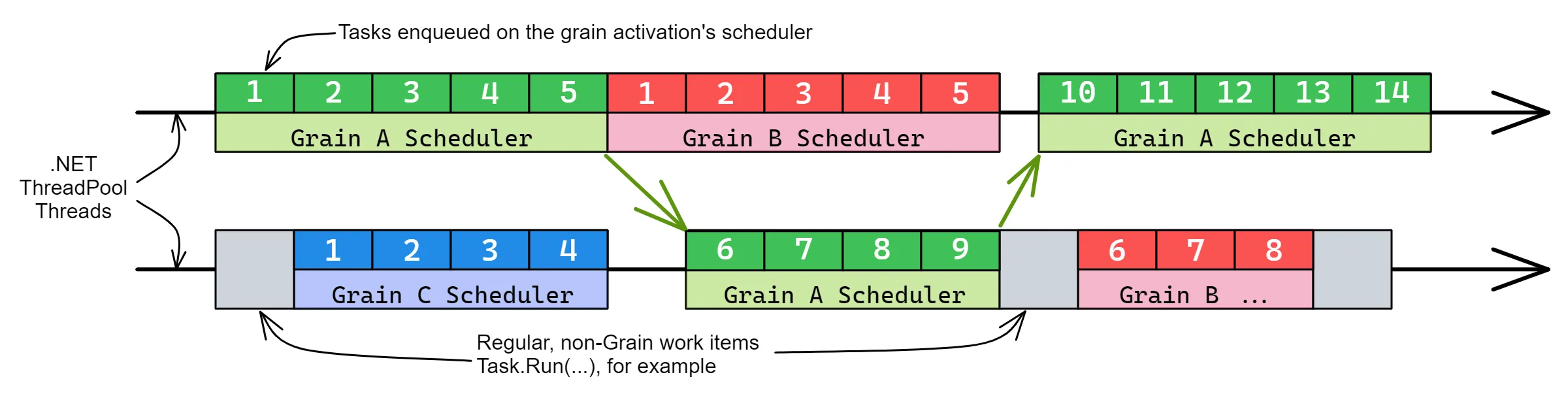

Only one thread can execute a WorkItemGroup at a time. That thread is not permanently assigned: different turns can run on different pool threads. The invariant is exclusive execution of the activation context, not thread affinity.

Source: WorkItemGroup and ActivationTaskScheduler.

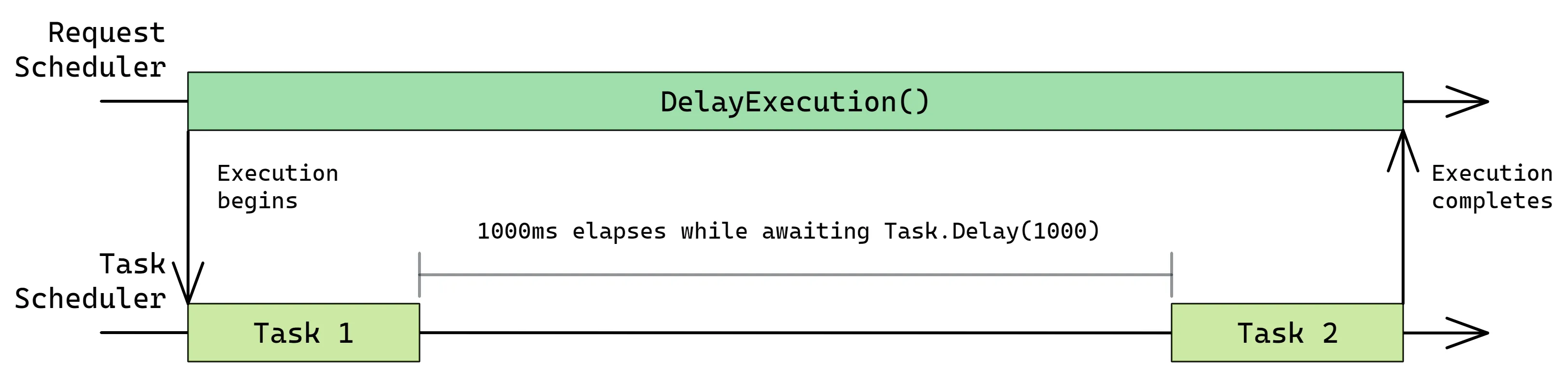

Async methods become multiple turns

An async grain method runs synchronously until it awaits incomplete work. Its continuation is later queued back to the same activation scheduler. Code before the incomplete await executes in one turn; code after it executes in a later turn.

For a non-reentrant activation, other application requests normally wait while this request is incomplete. For reentrant or selectively interleavable calls, another request can run during the await. It still runs as a separate synchronous turn; it does not execute in parallel with either portion of the awaiting method.

Therefore, grain state is protected from parallel access by the scheduler but can still change across an await when interleaving is allowed. Code must recheck assumptions after awaits in reentrant grains.

Request admission

ActivationData owns pending and running requests. It applies the grain’s concurrency policy, dispatches eligible messages, and signals completion so that another request can progress. Policies include:

• the default non-reentrant model;
• grain-wide reentrancy;
• call-chain reentrancy;
• AlwaysInterleaveAttribute; and
• predicate-based MayInterleaveAttribute.

The user-facing rules are documented in request scheduling. Internally, request admission and task serialization remain separate layers.

Admission is a state machine layered over the activation scheduler and shared thread pool. ActivationData keeps pending requests and running requests, evaluates the current interleaving policy, and starts an eligible request by enqueueing its work on the activation scheduler. Completion signals admission to reevaluate the queue. A request which is waiting on an incomplete task therefore occupies a logical slot according to the request policy, while its executing thread returns to the pool.

Call-chain reentrancy is narrower than grain-wide reentrancy: it permits progress for calls which belong to the current chain while preserving the non-interleaving default for unrelated calls. AlwaysInterleave and MayInterleave are explicit opt-ins because they trade simpler invariants for throughput or avoidance of dependency cycles.

Runtime context and inline execution

ActivationTaskScheduler.TryExecuteTaskInline permits inline execution only when the current RuntimeContext belongs to the same WorkItemGroup and the task was not already queued. Runtime helpers follow the same rule: execute inline in the matching grain context, otherwise enqueue.

This prevents a continuation or runtime callback from bypassing activation isolation simply because it originated on a thread which is already processing Orleans work.

Blocking and escaping the scheduler

Blocking a turn prevents every queued continuation and admitted request for that activation from progressing. Sync-over-async can deadlock when the awaited completion needs the same activation scheduler.

Run executes outside the activation scheduler. It can be useful for isolated CPU work, but code running there must not directly access mutable grain state or assume RuntimeContext.Current is the activation. Return immutable results and apply them in a scheduled continuation.

Fairness and diagnostics

WorkItemGroup drains work subject to runtime scheduling limits so one busy activation does not permanently own a thread-pool worker. Long synchronous turns still delay other work and are reported by runtime scheduling diagnostics. The .NET diagnostics tools provide the underlying runtime traces, counters, and dumps used alongside Orleans telemetry.

Scheduling guarantees are local to an activation. They do not order calls across grains, create a distributed lock, or provide message exactly-once behavior.

Activations compete on the process-wide thread pool. A long synchronous turn consumes a worker and delays that activation’s requests; a burst of work across many activations increases that competition. Queue length and turn-duration diagnostics indicate capacity pressure and require additional evidence to diagnose deadlock.
