Orleans observability

Observability is one of the most important aspects of a distributed system. It’s the ability to understand the system’s state at any given time. You can achieve this in various ways, including logging, metrics, and distributed tracing.

Logging

Orleans uses Microsoft.Extensions.Logging for all silo and client logs. You can use any logging provider compatible with Microsoft.Extensions.Logging. Your app code relies on dependency injection to get an instance of ILogger<T> and uses it to log messages. For more information, see Logging in .NET.

Applies to: Orleans 10.0, Orleans 9.0, Orleans 8.0, Orleans 7.0

Metrics

Metrics are numerical measurements reported over time. You most often use them to monitor an application’s health and generate alerts. For more information, see Metrics in .NET. Orleans uses the System.Diagnostics.Metrics APIs to collect metrics. These metrics are exposed to the OpenTelemetry project, which exports them to various monitoring systems.

To monitor your app without making any code changes, use the dotnet counters .NET diagnostic tool. To monitor Orleans ActivitySource counters for a specific <ProcessName>, use the dotnet counters monitor command as shown:

dotnet counters monitor -n <ProcessName> --counters Microsoft.Orleans

Imagine you’re running the Orleans GPS Tracker sample app and monitoring it in a separate terminal with the dotnet counters monitor command. The following output is typical:

Press p to pause, r to resume, q to quit.
    Status: Running
[Microsoft.Orleans]
    orleans-app-requests-latency-bucket (Count / 1 sec)                    0
        duration=10000ms                                                   0
        duration=1000ms                                                    0
        duration=100ms                                                     0
        duration=10ms                                                      0
        duration=15000ms                                                   0
        duration=1500ms                                                    0
        duration=1ms                                                   2,530
        duration=2000ms                                                    0
        duration=200ms                                                     0
        duration=2ms                                                       0
        duration=400ms                                                     0
        duration=4ms                                                       0
        duration=5000ms                                                    0
        duration=50ms                                                      0
        duration=6ms                                                       0
        duration=800ms                                                     0
        duration=8ms                                                       0
        duration=9223372036854775807ms                                     0
    orleans-app-requests-latency-count (Count / 1 sec)                 2,530
    orleans-app-requests-latency-sum (Count / 1 sec)                       0
    orleans-catalog-activation-working-set                                36
    orleans-catalog-activations                                           38
    orleans-consistent-ring-range-percentage-average                     100
    orleans-consistent-ring-range-percentage-local                       100
    orleans-consistent-ring-size                                           1
    orleans-directory-cache-size                                          27
    orleans-directory-partition-size                                      26
    orleans-directory-ring-local-portion-average-percentage              100
    orleans-directory-ring-local-portion-distance                          0
    orleans-directory-ring-local-portion-percentage                        0
    orleans-directory-ring-size                                        1,295
    orleans-gateway-received (Count / 1 sec)                           1,291
    orleans-gateway-sent (Count / 1 sec)                               2,582
    orleans-messaging-processing-activation-data                           0
    orleans-messaging-processing-dispatcher-forwarded (Count / 1           0
    orleans-messaging-processing-dispatcher-processed (Count / 1       2,543
        Direction=Request,Status=Ok                                    2,582
    orleans-messaging-processing-dispatcher-received (Count / 1        1,271
        Context=Grain,Direction=Request                                1,291
        Context=None,Direction=Request                                 1,291
    orleans-messaging-processing-ima-enqueued (Count / 1 sec)          5,113

For more information, see Investigate performance counters (dotnet-counters).

Orleans meters

Orleans uses the System.Diagnostics.Metrics APIs to collect metrics. Orleans categorizes each meter into domain-centric concerns, such as networking, messaging, gateway, etc. The following subsections describe the meters Orleans uses.

Networking

The following table shows a collection of networking meters used to monitor the Orleans networking layer.

Meter name	Type	Description
orleans-networking-sockets-closed	Counter<T>	A count of sockets that have closed.
orleans-networking-sockets-opened	Counter<T>	A count of sockets that have opened.

Messaging

The following table shows a collection of messaging meters used to monitor the Orleans messaging layer.

Meter name	Type	Description
orleans-messaging-sent-messages-size	Histogram<T>	A histogram representing the size of messages in bytes that have been sent.
orleans-messaging-received-messages-size	Histogram<T>	A histogram representing the size of messages in bytes that have been received.
orleans-messaging-sent-header-size	ObservableCounter<T>	An observable counter representing the number of header bytes sent.
orleans-messaging-received-header-size	ObservableCounter<T>	An observable counter representing the number of header bytes received.
orleans-messaging-sent-failed	Counter<T>	A count of failed sent messages.
orleans-messaging-sent-dropped	Counter<T>	A count of dropped sent messages.
orleans-messaging-processing-dispatcher-received	ObservableCounter<T>	An observable counter representing the number dispatcher received messages.
orleans-messaging-processing-dispatcher-processed	ObservableCounter<T>	An observable counter representing the number dispatcher processed messages.
orleans-messaging-processing-dispatcher-forwarded	ObservableCounter<T>	An observable counter representing the number dispatcher forwarded messages.
orleans-messaging-processing-ima-received	ObservableCounter<T>	An observable counter representing the number of incoming messages received.
orleans-messaging-processing-ima-enqueued	ObservableCounter<T>	An observable counter representing the number of incoming messages enqueued.
orleans-messaging-processing-activation-data	ObservableGauge<T>	An observable gauge representing all of the processing activation data.
orleans-messaging-pings-sent	Counter<T>	A count of pings sent.
orleans-messaging-pings-received	Counter<T>	A count of pings received.
orleans-messaging-pings-reply-received	Counter<T>	A count of ping replies received.
orleans-messaging-pings-reply-missed	Counter<T>	A count of ping replies missed.
orleans-messaging-expired"	Counter<T>	A count of messages that have expired.
orleans-messaging-rejected	Counter<T>	A count of messages that have been rejected.
orleans-messaging-rerouted	Counter<T>	A count of messages that have been rerouted.
orleans-messaging-sent-local	ObservableCounter<T>	An observable counter representing the number of local messages sent.

Gateway

The following table shows a collection of gateway meters used to monitor the Orleans gateway layer.

Meter name	Type	Description
orleans-gateway-connected-clients	UpDownCounter<T>	An up/down counter representing the number of connected clients.
orleans-gateway-sent	Counter<T>	A count of gateway messages sent.
orleans-gateway-received	Counter<T>	A count of gateway messages received.
orleans-gateway-load-shedding	Counter<T>	A count of gateway (load shedding) messages that have been rejected due to the gateway being overloaded.

Runtime

The following table shows a collection of runtime meters used to monitor the Orleans runtime layer.

Meter name	Type	Description
orleans-scheduler-long-running-turns	Counter<T>	A count of long running turns within the scheduler.
orleans-runtime-total-physical-memory	ObservableCounter<T>	An observable counter representing the total number of memory (in MB) of the Orleans runtime.
orleans-runtime-available-memory	ObservableCounter<T>	An observable counter representing the available memory (in MB) for the Orleans runtime.

Catalog

The following table shows a collection of catalog meters used to monitor the Orleans catalog layer.

Meter name	Type	Description
orleans-catalog-activations	ObservableGauge<T>	An observable gauge representing the number of catalog activations.
orleans-catalog-activation-working-set	ObservableGauge<T>	An observable gauge representing the number of activations within the working set.
orleans-catalog-activation-created	Counter<T>	A count of created activations.
orleans-catalog-activation-destroyed	Counter<T>	A count of destroyed activations.
orleans-catalog-activation-failed-to-activate	Counter<T>	A count of activations that failed to activate.
orleans-catalog-activation-collections	Counter<T>	A count of idle activation collections.
orleans-catalog-activation-shutdown	Counter<T>	A count of shutdown activations.
orleans-catalog-activation-non-existent	Counter<T>	A count of non-existent activations.
orleans-catalog-activation-concurrent-registration-attempts	Counter<T>	A count of concurrent activation registration attempts.

Directory

The following table shows a collection of directory meters used to monitor the Orleans directory layer.

Meter name	Type	Description
orleans-directory-lookups-local-issued	Counter<T>	A count of local lookups issued.
orleans-directory-lookups-local-successes	Counter<T>	A count of local successful lookups.
orleans-directory-lookups-full-issued	Counter<T>	A count of full directory lookups issued.
orleans-directory-lookups-remote-sent	Counter<T>	A count of remote directory lookups sent.
orleans-directory-lookups-remote-received	Counter<T>	A count of remote directory lookups received.
orleans-directory-lookups-local-directory-issued	Counter<T>	A count of local directory lookups issued.
orleans-directory-lookups-local-directory-successes	Counter<T>	A count of local directory successful lookups.
orleans-directory-lookups-cache-issued	Counter<T>	A count cached lookups issued.
orleans-directory-lookups-cache-successes	Counter<T>	A count of cached successful lookups.
orleans-directory-validations-cache-received	Counter<T>	A count of directory cache validations received.
orleans-directory-partition-size	ObservableGauge<T>	An observable gauge representing the directory partition size.
orleans-directory-cache-size	ObservableGauge<T>	An observable gauge representing the directory cache size.
orleans-directory-ring-size	ObservableGauge<T>	An observable gauge representing the directory ring size.
orleans-directory-ring-local-portion-distance	ObservableGauge<T>	An observable gauge representing the ring range owned by the local directory partition.
orleans-directory-ring-local-portion-percentage	ObservableGauge<T>	An observable gauge representing the ring range owned by the local directory, represented as a percentage of the total range.
orleans-directory-ring-local-portion-average-percentage	ObservableGauge<T>	An observable gauge representing the average percentage of the directory ring range owned by each silo, giving a representation of how balanced directory ownership.
orleans-directory-registrations-single-act-issued	Counter<T>	A count of directory single activation registrations issued.
orleans-directory-registrations-single-act-local	Counter<T>	A count of directory single activation registrations handled by the local directory partition.
orleans-directory-registrations-single-act-remote-sent	Counter<T>	A count of directory single activation registrations sent to a remote directory partition.
orleans-directory-registrations-single-act-remote-received	Counter<T>	A count of directory single activation registrations received from remote hosts.
orleans-directory-unregistrations-issued	Counter<T>	A count of directory deregistrations issued.
orleans-directory-unregistrations-local	Counter<T>	A count of directory deregistrations handled by the local directory partition.
orleans-directory-unregistrations-remote-sent	Counter<T>	A count of directory deregistrations sent to remote directory partitions.
orleans-directory-unregistrations-remote-received	Counter<T>	A count of directory deregistrations received from remote hosts.
orleans-directory-unregistrations-many-issued	Counter<T>	A count of directory multi-activation deregistrations issued.
orleans-directory-unregistrations-many-remote-sent	Counter<T>	A count of directory multi-activations deregistrations sent to remote directory partitions.
orleans-directory-unregistrations-many-remote-received	Counter<T>	A count of directory multi-activation deregistrations received from remote hosts.

Consistent ring

The following table shows a collection of consistent ring meters used to monitor the Orleans consistent ring layer.

Meter name	Type	Description
orleans-consistent-ring-size	ObservableGauge<T>	An observable gauge representing the consistent ring size.
orleans-consistent-ring-range-percentage-local	ObservableGauge<T>	An observable gauge representing the consistent ring local percentage.
orleans-consistent-ring-range-percentage-average	ObservableGauge<T>	An observable gauge representing the consistent ring average percentage.

Watchdog

The following table shows a collection of watchdog meters used to monitor the Orleans watchdog layer.

Meter name	Type	Description
orleans-watchdog-health-checks	Counter<T>	A count of watchdog health checks.
orleans-watchdog-health-checks-failed	Counter<T>	A count of failed watchdog health checks.

Client

The following table shows a collection of client meters used to monitor the Orleans client layer.

Meter name	Type	Description
orleans-client-connected-gateways	ObservableGauge<T>	An observable gauge representing the number of connected gateway clients.

Miscellaneous

The following table shows a collection of miscellaneous meters used to monitor various layers.

Meter name	Type	Description
orleans-grains	Counter<T>	A count representing the number of grains.
orleans-system-targets	Counter<T>	A count representing the number of system targets.

App requests

The following table shows a collection of app request meters used to monitor the Orleans app request layer.

Meter name	Type	Description
orleans-app-requests-latency	ObservableCounter<T>	An observable counter representing app request latency.
orleans-app-requests-timedout	ObservableCounter<T>	An observable counter representing app requests that have timed out.

Reminders

The following table shows a collection of reminder meters used to monitor the Orleans reminder layer.

Meter name	Type	Description
orleans-reminders-tardiness	Histogram<T>	A histogram representing the number of seconds a reminder is tardy.
orleans-reminders-active	ObservableGauge<T>	An observable gauge representing the number active reminders.
orleans-reminders-ticks-delivered	Counter<T>	A count representing the number of reminder ticks that have been delivered.

Storage

The following table shows a collection of storage meters used to monitor the Orleans storage layer.

Meter name	Type	Description
orleans-storage-read-errors	Counter<T>	A count representing the number of storage read errors.
orleans-storage-write-errors	Counter<T>	A count representing the number of storage write errors.
orleans-storage-clear-errors	Counter<T>	A count representing the number of storage clear errors.
orleans-storage-read-latency	Histogram<T>	A histogram representing the storage read latency in milliseconds.
orleans-storage-write-latency	Histogram<T>	A histogram representing the storage write latency in milliseconds.
orleans-storage-clear-latency	Histogram<T>	A histogram representing the storage clear latency in milliseconds.

Streams

The following table shows a collection of stream meters used to monitor the Orleans stream layer.

Meter name	Type	Description
orleans-streams-pubsub-producers-added	Counter<T>	A count of streaming pubsub producers added.
orleans-streams-pubsub-producers-removed	Counter<T>	A count of streaming pubsub producers removed.
orleans-streams-pubsub-producers	Counter<T>	A count of streaming pubsub producers.
orleans-streams-pubsub-consumers-added	Counter<T>	A count of streaming pubsub consumers added.
orleans-streams-pubsub-consumers-removed	Counter<T>	A count of streaming pubsub consumers removed.
orleans-streams-pubsub-consumers	Counter<T>	A count of streaming pubsub consumers.
orleans-streams-persistent-stream-pulling-agents	ObservableGauge<T>	An observable gauge representing the number of persistent stream pulling agents.
orleans-streams-persistent-stream-messages-read	Counter<T>	A count of persistent stream messages read.
orleans-streams-persistent-stream-messages-sent	Counter<T>	A count of persistent stream messages sent.
orleans-streams-persistent-stream-pubsub-cache-size	ObservableGauge<T>	An observable gauge representing the persistent stream pubsub cache size.
orleans-streams-queue-initialization-failures	Counter<T>	A count of steam queue initialization failures.
orleans-streams-queue-initialization-duration	Counter<T>	A count of steam queue initialization occurrences.
orleans-streams-queue-initialization-exceptions	Counter<T>	A count of steam queue initialization exceptions.
orleans-streams-queue-read-failures	Counter<T>	A count of steam queue read failures.
orleans-streams-queue-read-duration	Counter<T>	A count of steam queue read occurrences.
orleans-streams-queue-read-exceptions	Counter<T>	A count of steam queue read exceptions.
orleans-streams-queue-shutdown-failures	Counter<T>	A count of steam queue shutdown failures.
orleans-streams-queue-shutdown-duration	Counter<T>	A count of steam queue shutdown occurrences.
orleans-streams-queue-shutdown-exceptions	Counter<T>	A count of steam queue shutdown exceptions.
orleans-streams-queue-messages-received	ObservableCounter<T>	An observable counter representing the number of stream queue messages received.
orleans-streams-queue-oldest-message-enqueue-age	ObservableGauge<T>	An observable gauge representing the age of the oldest enqueued message.
orleans-streams-queue-newest-message-enqueue-age	ObservableGauge<T>	An observable gauge representing the age of the newest enqueued message.
orleans-streams-block-pool-total-memory	ObservableCounter<T>	An observable counter representing the stream block pool total memory in bytes.
orleans-streams-block-pool-available-memory	ObservableCounter<T>	An observable counter representing the stream block pool available memory in bytes.
orleans-streams-block-pool-claimed-memory	ObservableCounter<T>	An observable counter representing the stream block pool claimed memory in bytes.
orleans-streams-block-pool-released-memory	ObservableCounter<T>	An observable counter representing the stream block pool released memory in bytes.
orleans-streams-block-pool-allocated-memory	ObservableCounter<T>	An observable counter representing the stream block pool allocated memory in bytes.
orleans-streams-queue-cache-size	ObservableCounter<T>	An observable counter representing the stream queue cache size in bytes.
orleans-streams-queue-cache-length	ObservableCounter<T>	An observable counter representing the stream queue length.
orleans-streams-queue-cache-messages-added	ObservableCounter<T>	An observable counter representing the stream queue messages added.
orleans-streams-queue-cache-messages-purged	ObservableCounter<T>	An observable counter representing the stream queue messages purged.
orleans-streams-queue-cache-memory-allocated	ObservableCounter<T>	An observable counter representing the stream queue memory allocated.
orleans-streams-queue-cache-memory-released	ObservableCounter<T>	An observable counter representing the stream queue memory released.
orleans-streams-queue-cache-oldest-to-newest-duration	ObservableGauge<T>	An observable gauge representing the duration from the oldest to the newest stream queue cache.
orleans-streams-queue-cache-oldest-age	ObservableGauge<T>	An observable gauge representing the age of the oldest cached message.
orleans-streams-queue-cache-pressure	ObservableGauge<T>	An observable gauge representing the pressure on the stream queue cache.
orleans-streams-queue-cache-under-pressure	ObservableGauge<T>	An observable gauge representing whether the stream queue cache is under pressure.
orleans-streams-queue-cache-pressure-contribution-count	ObservableCounter<T>	An observable counter representing the stream queue cache pressure contributions.

Transactions

The following table shows a collection of transaction meters used to monitor the Orleans transaction layer.

Meter name	Type	Description
orleans-transactions-started	ObservableCounter<T>	An observable counter representing the number of started transactions.
orleans-transactions-successful	ObservableCounter<T>	An observable counter representing the number of successful transactions.
orleans-transactions-failed	ObservableCounter<T>	An observable counter representing the number of failed transactions.
orleans-transactions-throttled	ObservableCounter<T>	An observable counter representing the number of throttled transactions.

Export metrics

Various third-party metrics providers are available for use with Orleans. Export metrics from your app using the OpenTelemetry Protocol (OTLP). Many observability platforms consume OTLP data directly or through an OpenTelemetry Collector, including Prometheus, Grafana, and Azure Monitor.

To export metrics using OTLP with Orleans, install the OpenTelemetry.Exporter.OpenTelemetryProtocol NuGet package and call the following IServiceCollection extension method:

builder.Services.AddOpenTelemetry()
    .WithMetrics(metrics =>
    {
        metrics
            .AddOtlpExporter()
            .AddMeter("Microsoft.Orleans");
    });

The AddOtlpExporter method ensures the OTLP exporter is added to the builder. Orleans uses a Meter named "Microsoft.Orleans" to create Counter<T> instances for many Orleans-specific metrics. Use the AddMeter method to specify the name of the meter to subscribe to, in this case, "Microsoft.Orleans".

You can configure the OTLP exporter endpoint and other options as needed. For example:

builder.Services.AddOpenTelemetry()
    .WithMetrics(metrics =>
    {
        metrics
            .AddOtlpExporter(options =>
            {
                options.Endpoint = new Uri("http://localhost:4317");
            })
            .AddMeter("Microsoft.Orleans");
    });

Note

The default OTLP exporter configuration uses gRPC (typically port 4317). To export metrics to Prometheus, send telemetry through an OpenTelemetry Collector or configure OTLP/HTTP settings instead.

Distributed tracing

Distributed tracing is a set of tools and practices for monitoring and troubleshooting distributed applications. It’s a key component of observability and a critical tool for understanding your app’s behavior. Orleans supports distributed tracing with OpenTelemetry.

Regardless of the distributed tracing exporter you choose, call:

• AddActivityPropagation: which enables distributed tracing for the silo.
• AddActivityPropagation: which enables distributed tracing for the client.

Or set the EnableDistributedTracing config option to true.

Referring back to the Orleans GPS Tracker sample app, you can export distributed traces using the OpenTelemetry Protocol (OTLP). To use OpenTelemetry with OTLP and Orleans, install the OpenTelemetry.Exporter.OpenTelemetryProtocol NuGet package and call the following IServiceCollection extension method in Program.cs:

builder.Services.AddOpenTelemetry()
    .WithTracing(tracing =>
    {
        // Set a service name
        tracing.SetResourceBuilder(
            ResourceBuilder.CreateDefault()
                .AddService(serviceName: "GPSTracker", serviceVersion: "1.0"));

        // Good baseline for general Orleans observability
        tracing.AddSource(Orleans.Diagnostics.ActivitySources.ApplicationGrainActivitySourceName);
        tracing.AddSource(Orleans.Diagnostics.ActivitySources.LifecycleActivitySourceName);

        /*
        // Other source also available
        // Persistence spans
        tracing.AddSource(Orleans.Diagnostics.ActivitySources.StorageActivitySourceName);
        // Internal Runtime spans
        tracing.AddSource(Orleans.Diagnostics.ActivitySources.RuntimeActivitySourceName);
        */

        /*
        // Optionally add all Microsoft.Orleans.* Sources at once
        tracing.AddSource(Orleans.Diagnostics.ActivitySources.AllActivitySourceName);
        */

        tracing.AddOtlpExporter(otlp =>
        {
            otlp.Endpoint = new Uri("http://localhost:4317");
        });
    });

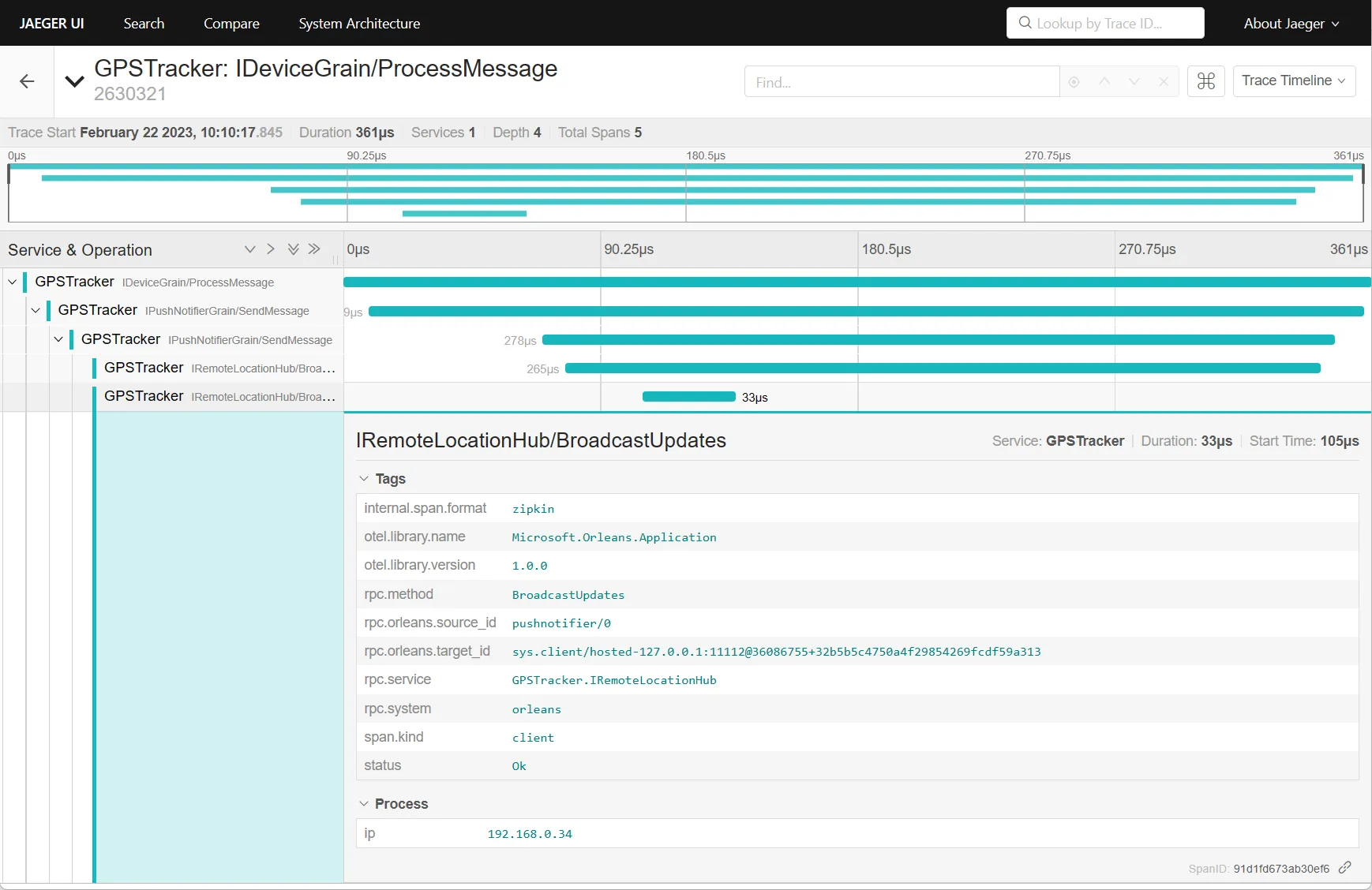

The OTLP exporter works with many observability backends including Jaeger, Zipkin, Grafana Tempo, and Azure Monitor. The traces can be visualized in tools like Jaeger UI:

For more information, see Distributed tracing.

Applies to: Orleans 3.x

Orleans outputs its runtime statistics and metrics through the ITelemetryConsumer interface. Your application can register one or more telemetry consumers for its silos and clients to receive statistics and metrics the Orleans runtime periodically publishes. These can be consumers for popular telemetry analytics solutions or custom ones for any other destination and purpose. Three telemetry consumers are currently included in the Orleans codebase.

They’re released as separate NuGet packages:

• Microsoft.Orleans.OrleansTelemetryConsumers.AI: For publishing to Azure Application Insights.

• Microsoft.Orleans.OrleansTelemetryConsumers.Counters: For publishing to Windows performance counters. The Orleans runtime continually updates many of them. The CounterControl.exe tool, included in the Microsoft.Orleans.CounterControl NuGet package, helps register necessary performance counter categories. It must run with elevated privileges. Monitor the performance counters using any standard monitoring tools.

• Microsoft.Orleans.OrleansTelemetryConsumers.NewRelic: For publishing to New Relic.

To configure your silo and client to use telemetry consumers, the silo configuration code looks like this:

var siloHostBuilder = new HostBuilder()
    .UseOrleans(c =>
    {
        c.AddApplicationInsightsTelemetryConsumer("INSTRUMENTATION_KEY");
    });

The client configuration code looks like this:

var clientBuilder = new ClientBuilder();
clientBuilder.AddApplicationInsightsTelemetryConsumer("INSTRUMENTATION_KEY");

To use a custom-defined TelemetryConfiguration (which might have TelemetryProcessors, TelemetrySinks, etc.), the silo configuration code looks like this:

var telemetryConfiguration = TelemetryConfiguration.CreateDefault();
var siloHostBuilder = new HostBuilder()
    .UseOrleans(c =>
    {
        c.AddApplicationInsightsTelemetryConsumer(telemetryConfiguration);
    });

Client configuration code look like this:

var clientBuilder = new ClientBuilder();
var telemetryConfiguration = TelemetryConfiguration.CreateDefault();
clientBuilder.AddApplicationInsightsTelemetryConsumer(telemetryConfiguration);

See also

• Logging in .NET
• .NET metrics
• Investigate performance counters (dotnet-counters)
• .NET distributed tracing
